High-performance dome "A" DOME

The "A" DOME born from the need to create a product that would meet the most recent standards regarding the building energy certification.

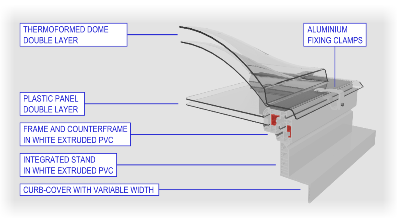

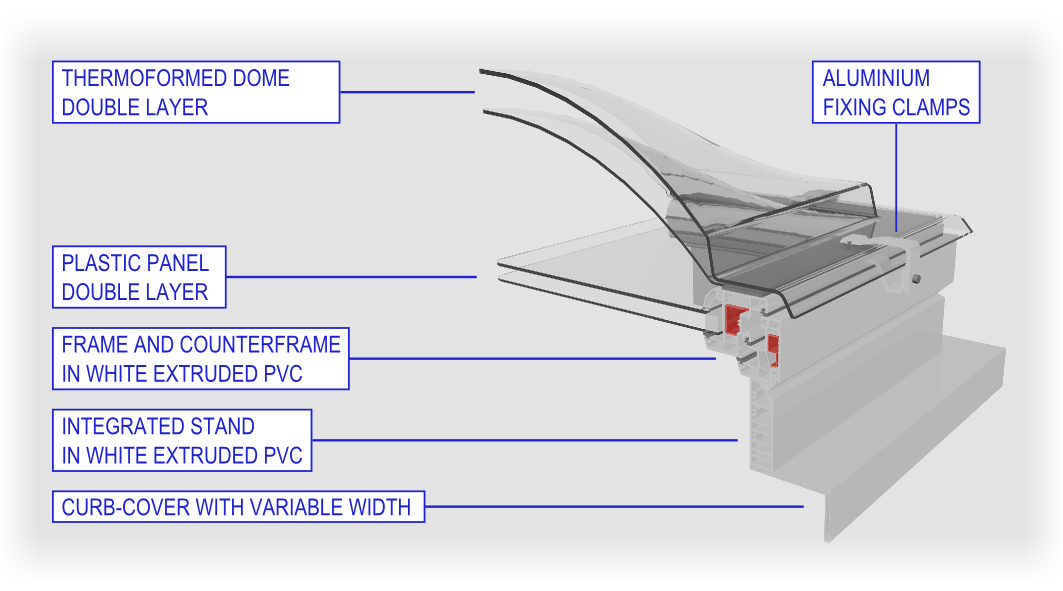

It is realized with a system of 4 walls in plastic material: 2 domed thermoformed and 2 flat, which guarantee high performance of thermal insulation. The supporting structure is made of extruded white PVC, and includes, in addition to the frame and the openable counterframe, also a curb-cover with variable width, to adapt to any dimensional requirements. The curb-cover can also be absent in case of installation on flat floors with the need to turn-up the waterproof membrane directly on the dome stand.

The range of available sizes is equal to standard domes (from 40x40 cm up to 200x200 cm for square domes and 170x270 cm for rectangular domes, with variations of 10 cm on each side), as well as the possibility of accessories: opening devices, mosquito net and blackout system in electric or manual version, as well as weather stations, remote controls for openings automation and batteries in case of lack of main power.

Get your custom offer now WITH NO OBLIGATION!


The informative material about "A" DOME is available in the DOWNLOAD AREA.
